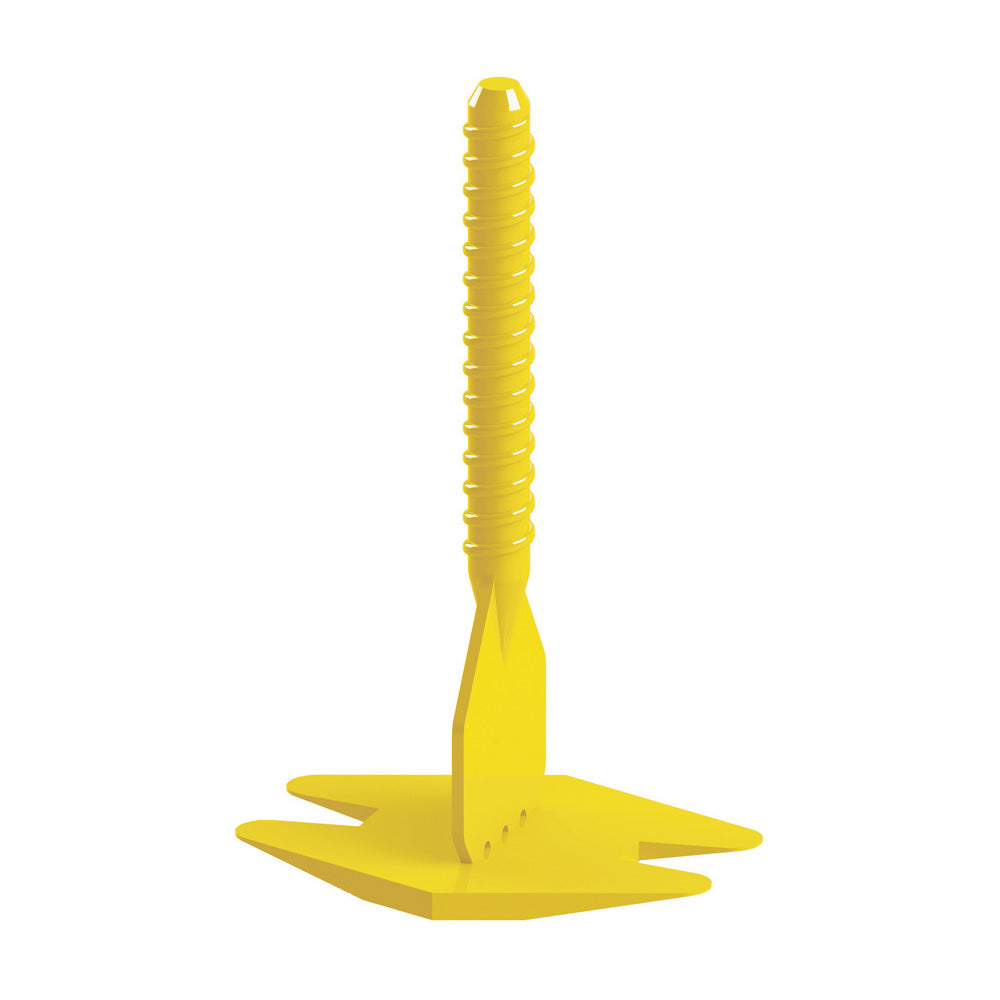

1mm Big Spin Hurricane Level Bases

250 x 1MM BIG SPIN HURRICANE STANDARD BASE 3-15MM

This is the BASE only. The CAPS are sold separately

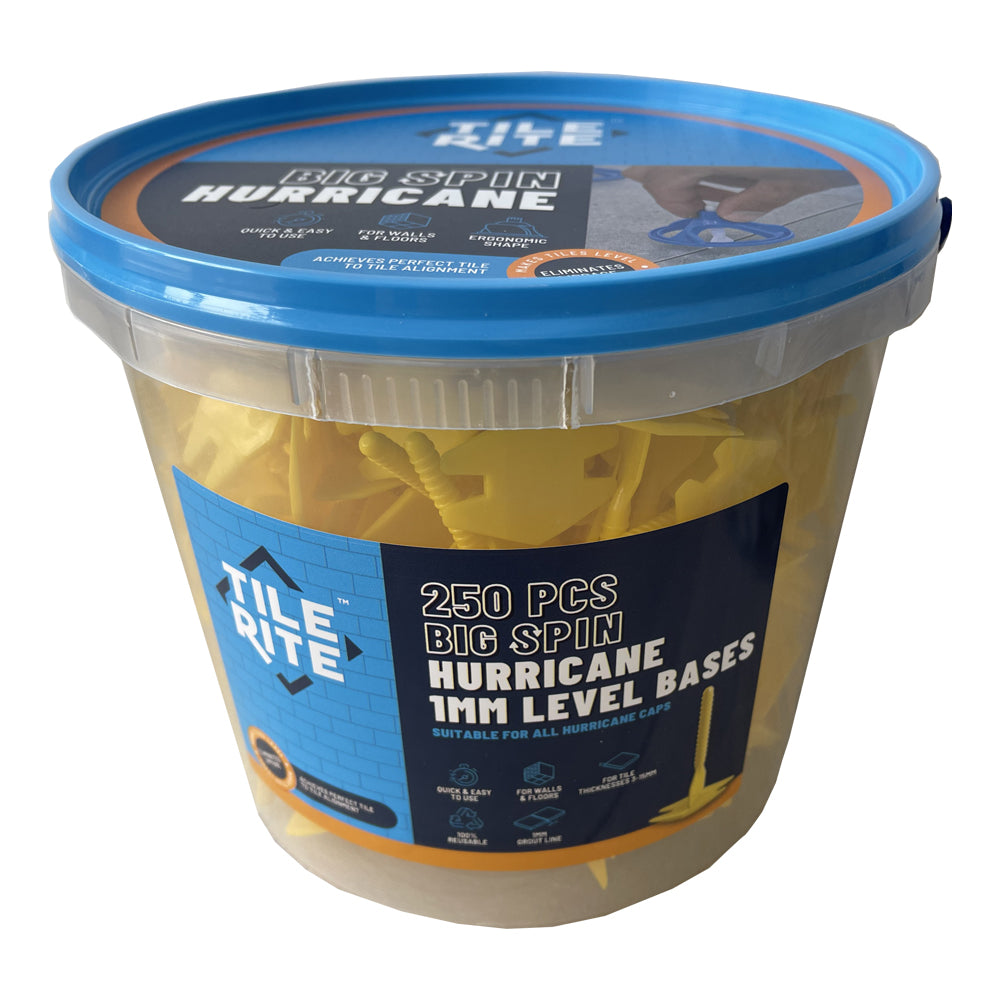

• 250 of the 1mm Spacer Bases in a tub
• Ensures an even 1mm grout line for wall and floor tiles
• 2 part system for perfect tile-to-tile alignment
• Designed for fitting large format Porcelain, Marble & Stone tiles from 3mm to 15mm thick

• Interchangeable with our BIG SPIN level system and caps
• For wall & floor tiles from 3-15mm (for 20mm outdoor tiles use the DEEP version)

View the whole range of the Hurricane Big Spin levelling system.

INSTRUCTIONS FOR USE:

1. Insert threaded spacer base beneath each exposed edge of tile, make sure there is contact between the spacer and the tile with no mortar in between.
2. Install the next tile tightly against the already positioned threaded spacer base. Slide the back and forth or use a rubber mallet to bed the tile into the mortar whilst releasing air trapped below.
3. Place the Big Spin cap on top of the threaded spacer base and spin the cap down to the tile surface. Turn cap as required until all adjacent surfaces are flush.
4. After the mortar is cured, the caps and threaded posts can be removed by kicking, using a rubber mallet or removal roller in the same direction as the grout joint.

Use this table as a guide to calculate the quantity you need based on the size of the tile chosen, and the square metres require to cover.

Example: tile that measures 100cm x 50cm = 12 spiner pieces per m2 required
