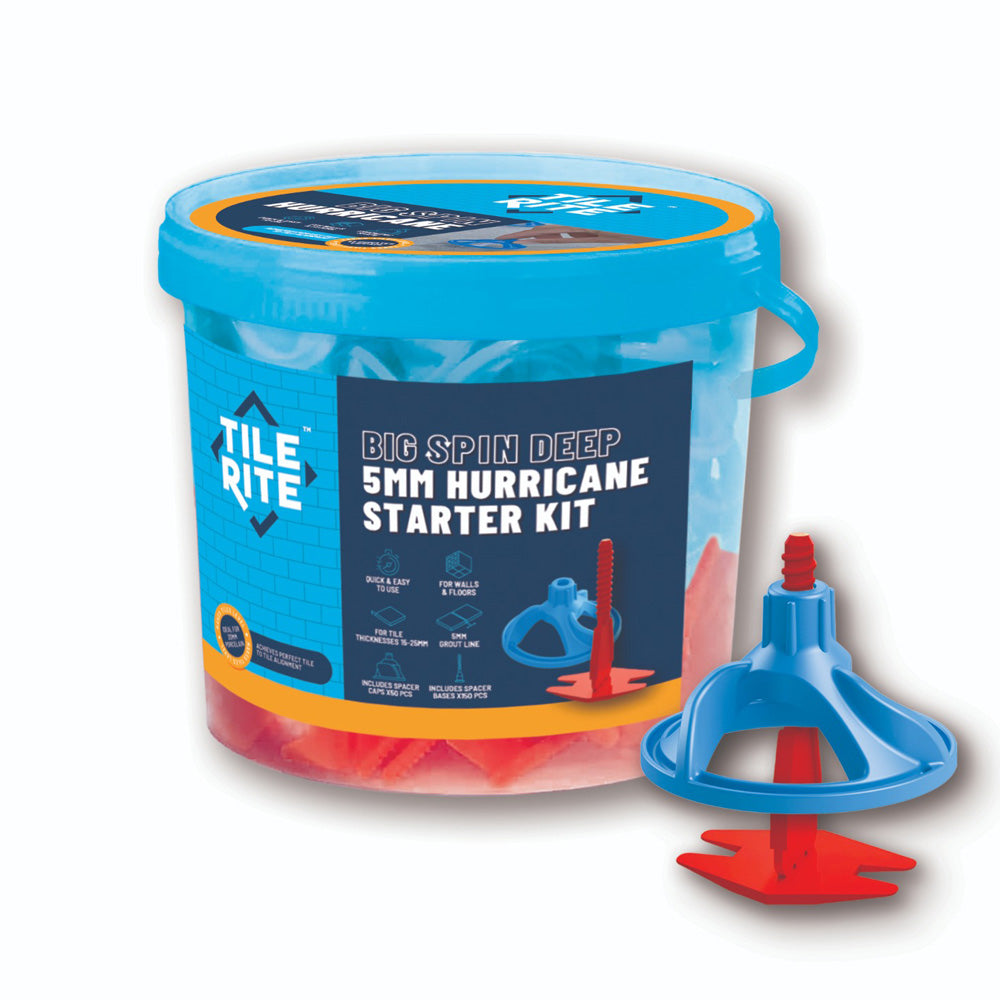

Big Spin Levelling System Kit

BIG SPIN HURRICANE LEVEL SYSTEM

• 2 part system for perfect tile-to-tile alignment (50 Caps + 150 Spacer Bases)

• Interchangeable with our BIG SPIN level system


Come in three different grout line sizes

2mm

• 2mm Spacer Base - Ensures an even 2mm grout line
• Designed for fitting large format Porcelain, Marble & Stone tiles from 3mm to 15mm thick
• For wall & floor tiles from 3-15mm

4mm

• 4mm Spacer Base - Ensures an even 4mm grout line
• Designed for fitting large format Porcelain, Marble & Stone tiles from 15mm to 25mm thick
• For 20mm outdoor floor tiles and floor tiles from 15-25mm

5mm

• 5mm Spacer Base - Ensures an even 5mm grout line
• Designed for fitting large format Porcelain, Marble & Stone tiles from 15mm to 25mm thick
• For 20mm outdoor floor tiles and floor tiles from 15-25mm


View the whole range of the Hurricane Big Spin levelling system.

INSTRUCTIONS FOR USE:

1. Insert threaded spacer base beneath each exposed edge of tile, make sure there is contact between the spacer and the tile with no mortar in between.
2. Install the next tile tightly against the already positioned threaded spacer base. Slide the back and forth or use a rubber mallet to bed the tile into the mortar whilst releasing air trapped below.
3. Place the Big Spin cap on top of the threaded spacer base and spin the cap down to the tile surface. Turn cap as required until all adjacent surfaces are flush.
4. After the mortar is cured, the caps and threaded posts can be removed by kicking, using a rubber mallet or removal roller in the same direction as the grout joint.

Use this table as a guide to calculate the quantity you need based on the size of the tile chosen, and the square metres require to cover.

Example: tile that measures 100cm x 50cm = 12 spiner pieces per m2 required
