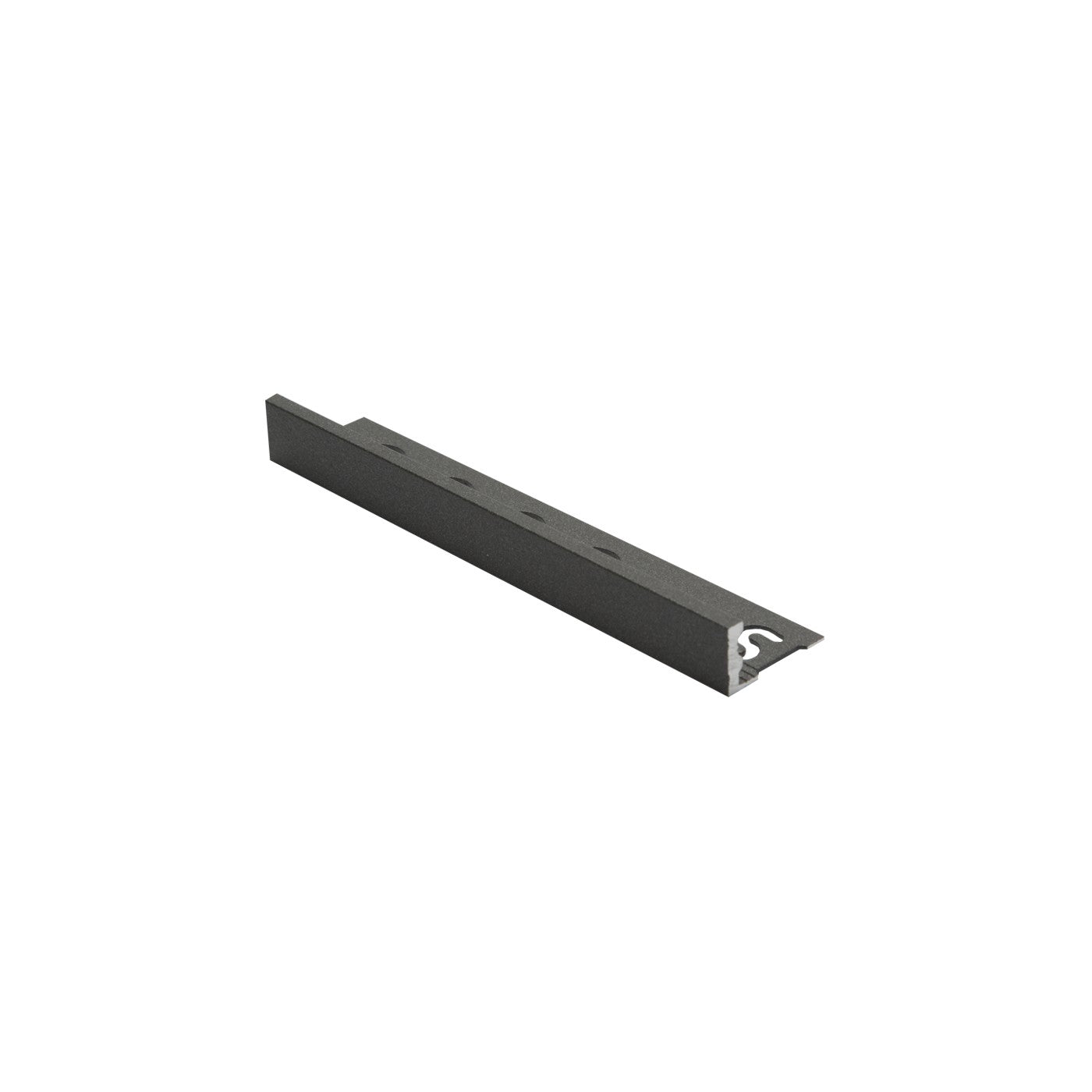

Genesis Dark Granite Straight Edge Aluminium Tile Trim
£13.19
Tax included.
Shipping calculated at checkout.
Special order item: 3-5 days
Quantity
The Genesis ESA Straight Edge Aluminium Tile Trim in Dark Granite is a textured, stone-effect anodised aluminium profile that delivers a discreet edge finish to wall and floor tiles, with a deep charcoal-grey granite look with fine mineral flecking. It sits neatly alongside dark and bold tile schemes, black or graphite grout lines without drawing attention away from the tiling. Made from AA 6063 T6 aluminium extruded and anodised to DIN 17611, with a 21mm perforated fixing tab and 3mm face. Available in 8mm, 10mm, 12mm, and 22.5mm depths, in 2.5m lengths, with matching ESC corner pieces.
2.5m lengthSizes: 8mm, 10mm, 12mm, 22.5mmWall & floor useAA 6063 T6 aluminiumAnodised to DIN 17611ESC corner pieces available
MaterialAA 6063 T6 Aluminium
Length2.5mper length
Profile depth (D)8 / 10 / 12 / 22.5mm
Fixing tab width21mm
Face height3mm
Wall thickness0.8mm
FinishDark Granitetextured
ApplicationWalls & floors
Suitable for
Wall and floor tile edge finishing
Dark and bold tile schemes, black or graphite grout lines
Ceramic, porcelain, and natural stone tiles
Internal installations
Schemes where a discreet, textured edge is preferred
Not suitable for
Permanent outdoor exposure
Prolonged contact with alkaline materials
Highly acidic cleaning products
Damaged finish cannot be touched up
Straight edge vs square edge Dark Granite — which profile do you need?
Choose straight edge when
The most discreet possible edge is wanted
The trim should be invisible and functional
An 8mm depth is needed
Choose square edge when
A defined, structured edge detail is wanted
The trim will also serve as a feature strip between tile rows
A more architectural finish is the goal
How to fit & cut this trim
Cutting to length
1
Measure and mark the trim length required. Always measure twice.The textured anodised surface is susceptible to scratching.
2
Cut with a fine-tooth mitre saw or metal-cutting blade.Do not use a standard wood saw blade.
3
For external corners, mitre at 45°.Use ESC corner pieces where a neat mitre is difficult to achieve.
4
Deburr cut edges with a fine metal file before fitting.
Fitting the trim
1
Select the correct depth — 1.5–2.0mm greater than the tile. Dry-fit before adhesive.
2
Trowel adhesive and press the fixing tab firmly into it.
3
Embed tiles flush with the profile.Remove adhesive and grout from the trim face immediately.
4
Fill joint with grout. Wipe face before grout sets.Choose a grout tone that complements the stone-effect finish.
DownloadsESA/EFA technical datasheet
