Genesis Brushed Gold Square Edge Aluminium Tile Trim

£8.33
Tax included. Shipping calculated at checkout.
Special order item: 3-5 days
Size
Quantity
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Anodised aluminium square trim — brushed gold finish. Use as a tile edge or decorative feature strip. For a straight edge in brushed brass see the Genesis ESA Brushed Brass.

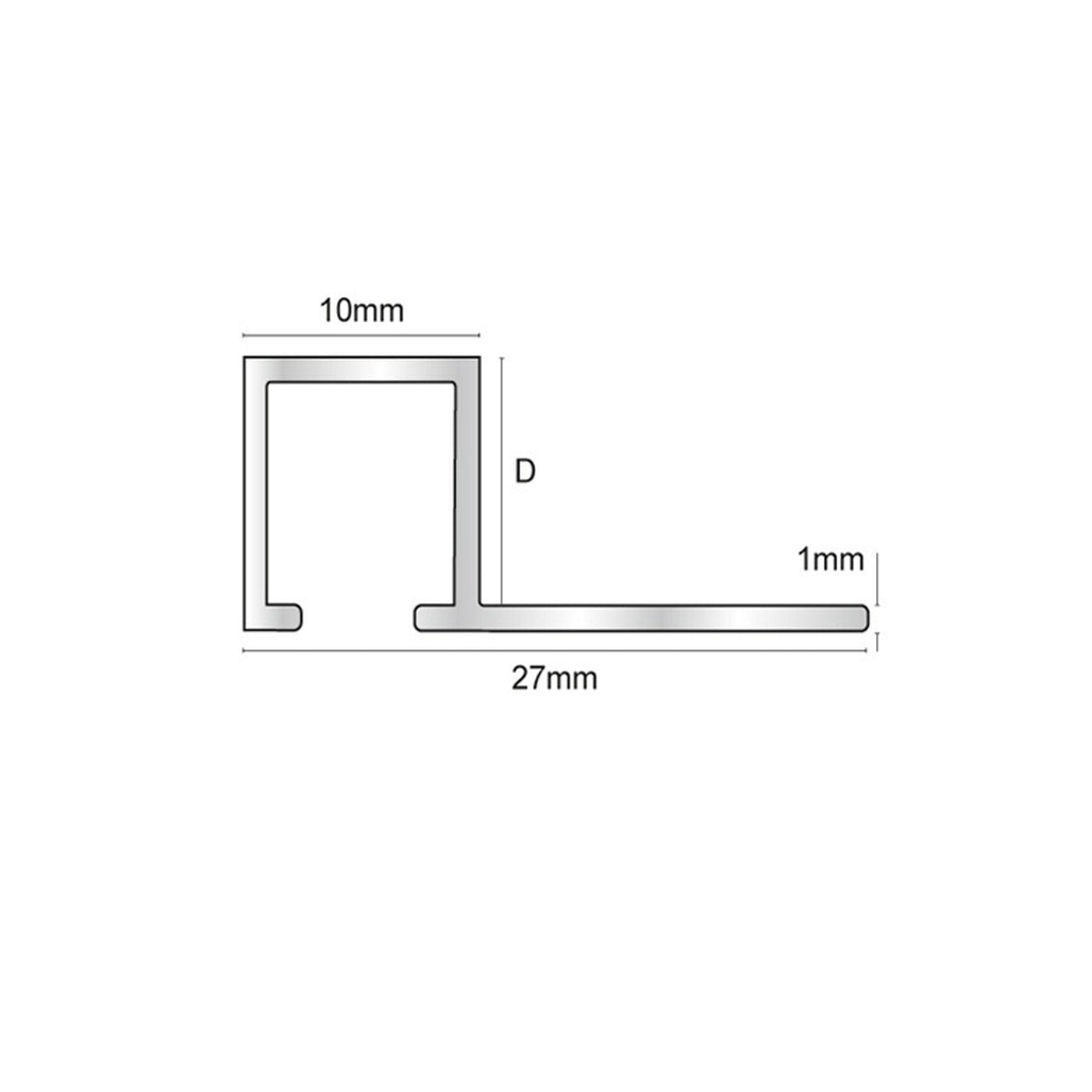

The Genesis TDP Aluminium Square Trim in Brushed Gold is a premium edge and feature profile with a distinctive box-section appearance. The TDP presents a full 10mm square face when installed — giving it an architectural, furniture-like quality. It can be used as a tile edge trim on walls or floors, or laid between tile rows as a decorative feature strip. Made from AA 6063 T6 aluminium anodised to DIN 17611, with a 27mm fixing tab. Available in 10mm and 12mm depths, 2.5m lengths.

2.5m length Sizes: 10mm, 12mm Wall & floor use Use as edge or feature strip 10mm square face
Material
AA 6063 T6 Aluminium
Length
2.5m
per length
Profile depth (D)
10 / 12mm
Face width
10mm
square section
Fixing tab width
27mm
Wall thickness
1mm
Finish
Brushed Gold
anodised DIN 17611
Application
Walls & floors
Suitable for
Wall and floor tile edge finishing
Decorative feature strip between tile rows
Ceramic, porcelain, and natural stone tiles
Internal installations
Not suitable for
Permanent outdoor exposure
Prolonged contact with alkaline materials — must be removed immediately
Highly acidic or chemical cleaning products
TDP square trim vs ESA straight edge — which profile do I need?
Choose TDP square trim when
A bold, architectural edge is the goal
The trim will also serve as a decorative feature strip
A more substantial, premium-looking profile is needed
Choose ESA straight edge when
A minimal, discreet edge is preferred
The trim should not draw attention to itself
Working with large format tiles
How to fit & cut aluminium tile trim
Cutting to length
1
Measure and mark. Always measure twice.
Handle carefully — anodised surface is susceptible to scratching.
2
Cut with a fine-tooth mitre saw or metal-cutting blade.
Do not use a standard wood saw blade.
3
For external corners, mitre each piece at 45°.
4
Deburr any cut edges with a fine metal file before fitting.
Fitting the trim
1
Dry-fit before applying adhesive.
2
Trowel adhesive and press fixing tab firmly in. Fill all cavities to prevent alkaline water collecting.
3
Embed tiles flush with the top of the profile.
Remove adhesive and grout immediately — alkaline materials corrode aluminium.
4
Fill joint with grout. Wipe face with damp cloth before grout sets.

Delivery Service

Please note this item is a special order item, is shipped directly from our suppliers, and have their own delivery rates.

They will be delivered separately from any stock items ordered.
