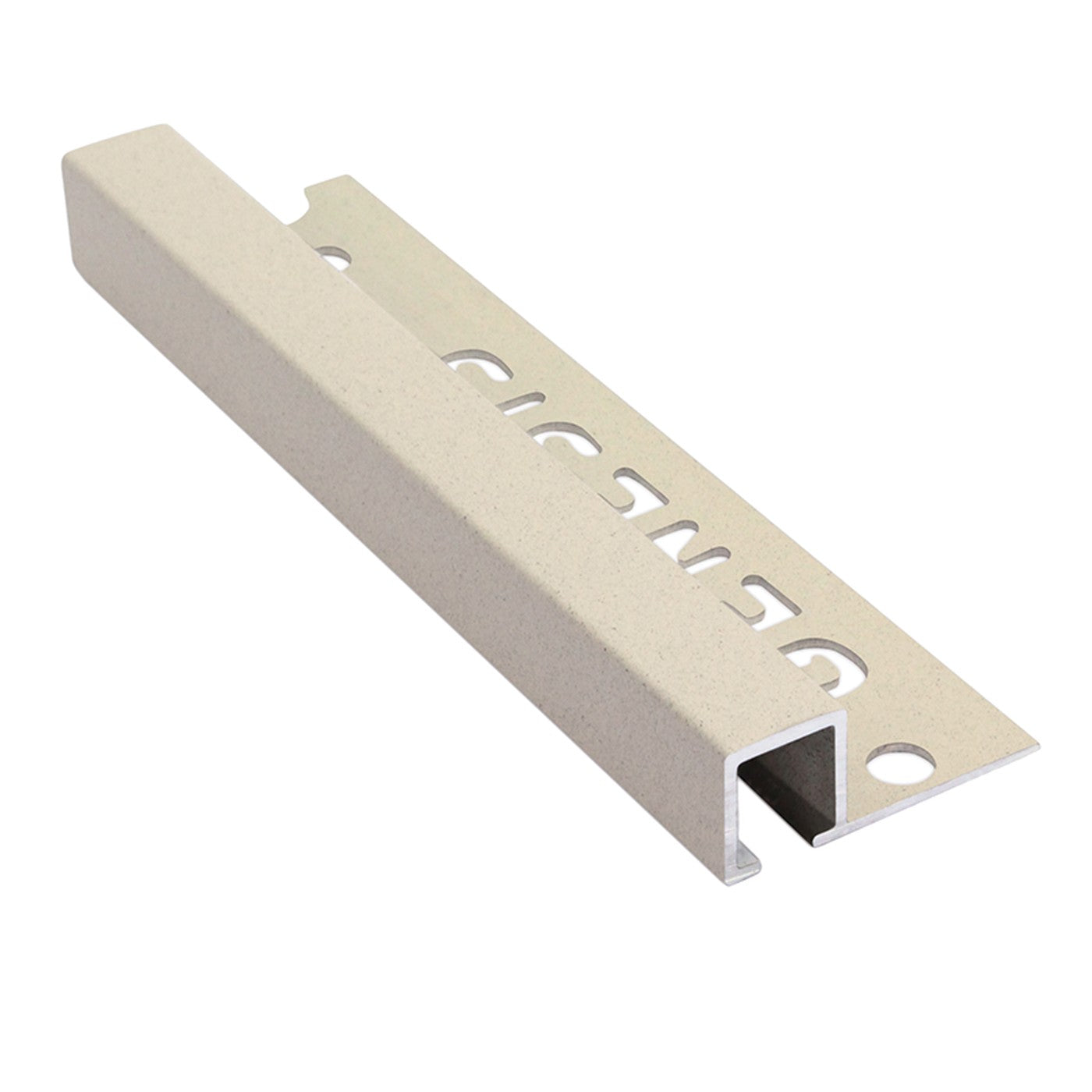

The Genesis TDP Aluminium Square Trim in Sand Stone is a textured, stone-effect profile that combines the bolder presence of a square edge with a warm sand-beige stone look with a soft, weathered texture. The 10mm square face gives it more visual weight than a straight edge trim — making it suitable as a tile edging on walls or floors, or as a decorative feature strip laid between tile rows. In Sand Stone it works naturally alongside warm neutral, beige and travertine-look tile schemes. Made from AA 6063 T6 aluminium extruded and anodised to DIN 17611, with a 27mm perforated fixing tab. Available in 10mm, 12mm, and 22.5mm depths, in 2.5m lengths, with matching EDP corner pieces.
2.5m lengthSizes: 10mm, 12mm, 22.5mmWall & floor useAA 6063 T6 aluminiumAnodised to DIN 17611EDP corner pieces available

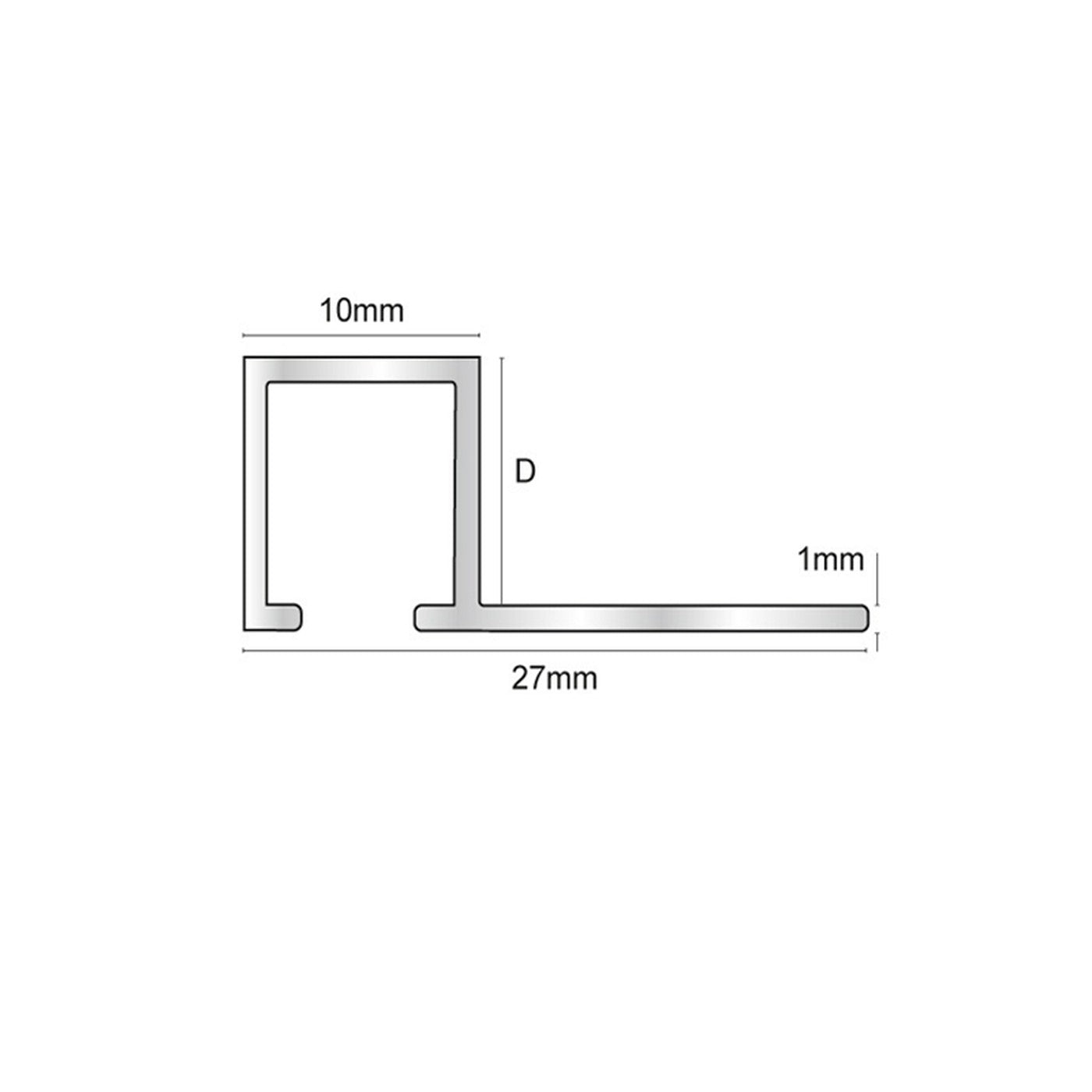

MaterialAA 6063 T6 Aluminium
Length2.5mper length

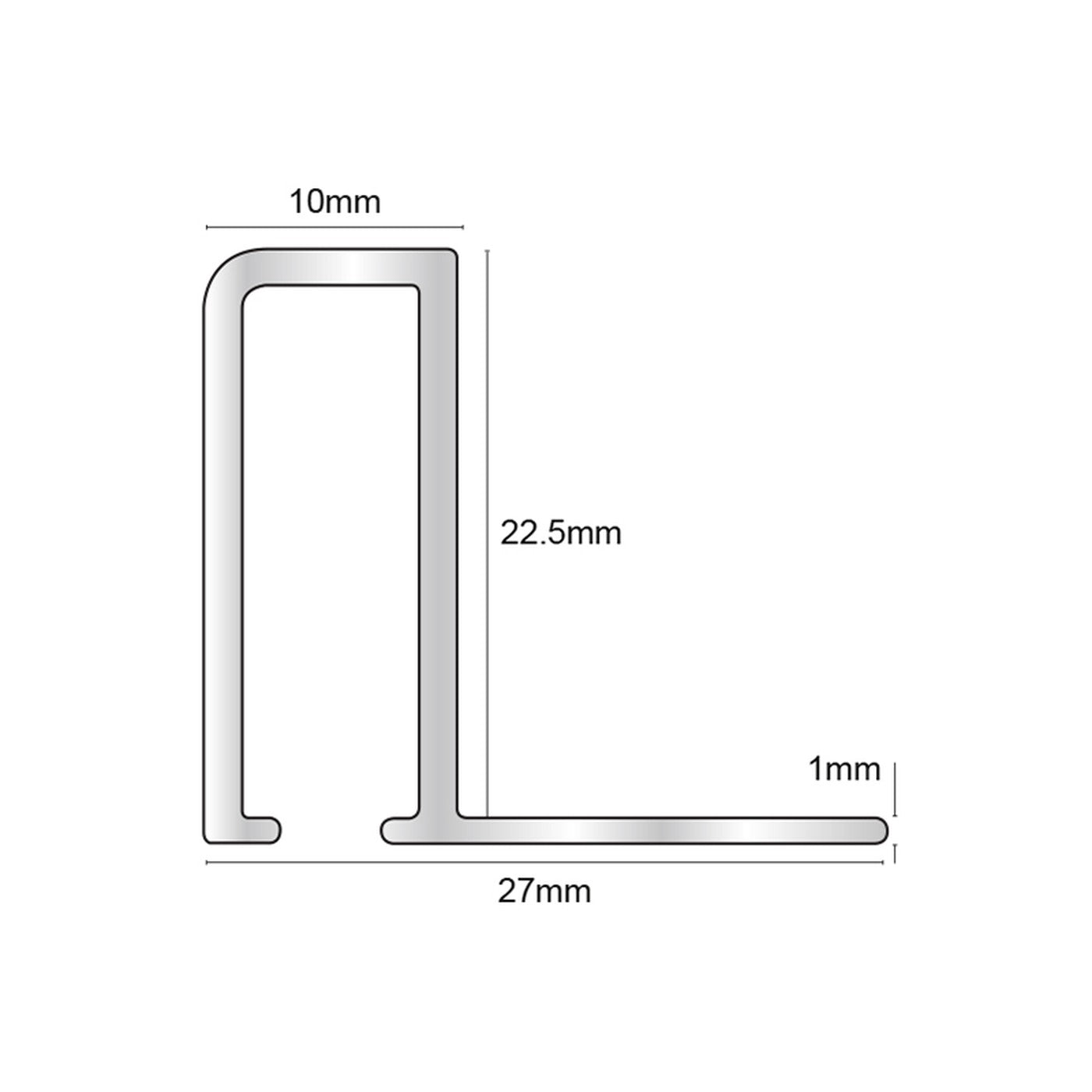

Profile depth (D)10 / 12 / 22.5mm
Face width10mmsquare section
Fixing tab width27mm
Wall thickness1mm
FinishSand Stonetextured
ApplicationWalls & floors
Suitable for
Wall and floor tile edge finishing
Decorative feature strip between tile rows
Warm neutral, beige and travertine-look tile schemes
Ceramic, porcelain, and natural stone tiles
Internal installations
Not suitable for
Permanent outdoor exposure
Prolonged contact with alkaline materials (adhesive/grout residue)
Highly acidic or chemical cleaning products
Damaged finish cannot be touched up — recoating required
Square edge vs straight edge Sand Stone — which profile do you need?
Choose square edge when
A defined, structured edge detail is wanted
The trim will also serve as a feature strip between tile rows
A more architectural finish is the goal
Choose straight edge when
The most discreet possible edge is wanted
The trim should be invisible and functional
An 8mm depth is needed
How to fit & cut this trim
Cutting to length
1
Measure and mark the trim length required. Always measure twice before cutting.The textured anodised surface is susceptible to scratching — handle carefully.
2
Cut with a fine-tooth mitre saw or metal-cutting blade.Do not use a standard wood saw blade — use a dedicated metal or multi-material blade.
3
For external corners, mitre each piece at 45°.Use EDP corner pieces where a neat mitre is difficult to achieve.
4
Deburr any cut edges with a fine metal file before fitting.
Fitting the trim
1
Select the correct depth and dry-fit before applying adhesive.
2
Trowel adhesive over the perimeter and press the perforated fixing tab firmly into it.
3
Embed tiles flush with the top of the profile.Remove adhesive and grout from the trim face immediately.
4
Fill the joint with grout. Wipe the trim face before grout sets.Use a grout tone that complements the stone-effect finish.
DownloadsTDP/TDF technical datasheet
